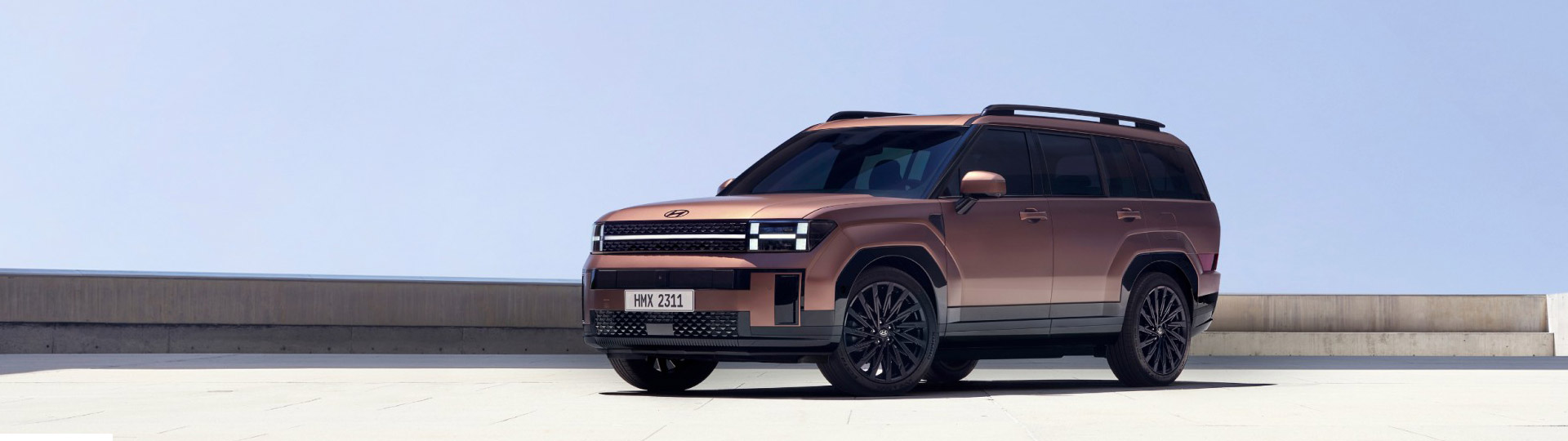

The all-new SANTA FE
Specification
Specification
Choose a Trim
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front Wheelthread (mm) | 1,646 / 1,637 / 1,643 |
| Rear Wheelthread (mm) | 1,656 / 1,647 / 1,653 |
Performance
Theta III 2.5 Gdi Automatic Transmission 2WD 5-Seater ( Standard )
Engine
| Engine Type | θⅢ 2.5 GDI (Smartstream G2.5) |
|---|---|
| Displacement (cc) | 2,497 |
| Max Power (ps/rpm) | 194/6,100 |
| Max Toque (kg-m/rpm) | 25.1/4,000 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front OverHang (mm) | 915 |
| Rear OverHang (mm) | 1,100 |
Performance
Theta III 2.5 Gdi Automatic Transmission 2WD 6-Seater ( Standard )
Engine
| Engine Type | θⅢ 2.5 GDI (Smartstream G2.5) |
|---|---|
| Displacement (cc) | 2,497 |
| Max Power (ps/rpm) | 194/6,100 |
| Max Toque (kg-m/rpm) | 25.1/4,000 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front Wheelthread (mm) | 1,646 / 1,637 / 1,643 |
| Rear Wheelthread (mm) | 1,656 / 1,647 / 1,653 |
| Front OverHang (mm) | 915 |
| Rear OverHang (mm) | 1,100 |
Performance
Theta III 2.5 Gdi Automatic Transmission 2WD 7-Seater ( Standard )
Engine
| Engine Type | θⅢ 2.5 GDI (Smartstream G2.5) |
|---|---|
| Displacement (cc) | 2,497 |
| Max Power (ps/rpm) | 194/6,100 |
| Max Toque (kg-m/rpm) | 25.1/4,000 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front Wheelthread (mm) | 1,646 / 1,637 / 1,643 |
| Rear Wheelthread (mm) | 1,656 / 1,647 / 1,653 |
Weight
| Lightest WeightCurb (kg) | 1,785 |
|---|---|
| Heaviest WeightCurb (kg) | 1,915 |
Performance
Theta III 2.5 Gdi Automatic Transmission 4WD 5-Seater ( Standard )
Engine
| Engine Type | θⅢ 2.5 GDI (Smartstream G2.5) |
|---|---|
| Displacement (cc) | 2,497 |
| Max Power (ps/rpm) | 194/6,100 |
| Max Toque (kg-m/rpm) | 25.1/4,000 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front Wheelthread (mm) | 1,646 / 1,637 / 1,643 |
| Rear Wheelthread (mm) | 1,656 / 1,647 / 1,653 |
| Front OverHang (mm) | 915 |
| Rear OverHang (mm) | 1,100 |
Performance
Theta III 2.5 Gdi Automatic Transmission 4WD 6-Seater ( Standard )
Engine
| Engine Type | θⅢ 2.5 GDI (Smartstream G2.5) |
|---|---|
| Displacement (cc) | 2,497 |
| Max Power (ps/rpm) | 194/6,100 |
| Max Toque (kg-m/rpm) | 25.1/4,000 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front Wheelthread (mm) | 1,646 / 1,637 / 1,643 |
| Rear Wheelthread (mm) | 1,656 / 1,647 / 1,653 |
| Front OverHang (mm) | 915 |
| Rear OverHang (mm) | 1,100 |
Performance
Theta III 2.5 Gdi Automatic Transmission 4WD 7-Seater ( Standard )
Engine
| Engine Type | θⅢ 2.5 GDI (Smartstream G2.5) |
|---|---|
| Displacement (cc) | 2,497 |
| Max Power (ps/rpm) | 194/6,100 |
| Max Toque (kg-m/rpm) | 25.1/4,000 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front Wheelthread (mm) | 1,646 / 1,637 / 1,643 |
| Rear Wheelthread (mm) | 1,656 / 1,647 / 1,653 |
| Front OverHang (mm) | 915 |
| Rear OverHang (mm) | 1,100 |
Performance
Theta III 2.5 T-Gdi 2WD DCT 5-Seater ( Standard )
Engine
| Engine Type | θⅢ 2.5 TGDI (Smartstream G2.5T) |
|---|---|
| Displacement (cc) | 2,497 |
| Max Power (ps/rpm) | 281/5,800 |
| Max Toque (kg-m/rpm) | 43/1,700~4,000 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front Wheelthread (mm) | 1,646 / 1,637 / 1,643 |
| Rear Wheelthread (mm) | 1,656 / 1,647 / 1,653 |
| Front OverHang (mm) | 915 |
| Rear OverHang (mm) | 1,100 |
Performance
Theta III 2.5 T-Gdi 2WD DCT 6-Seater ( Standard )
Engine
| Engine Type | θⅢ 2.5T GDI (Smartstream G2.5T) |
|---|---|
| Displacement (cc) | 2,497 |
| Max Power (ps/rpm) | 281/5,800 |
| Max Toque (kg-m/rpm) | 43.0/1,700~4000 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front Wheelthread (mm) | 1,646 / 1,637 / 1,643 |
| Rear Wheelthread (mm) | 1,656 / 1,647 / 1,653 |
| Front OverHang (mm) | 915 |
| Rear OverHang (mm) | 1,100 |
Performance
Theta III 2.5 T-Gdi 2WD DCT 7-Seater ( Standard )
Engine
| Engine Type | θⅢ 2.5T GDI (Smartstream G2.5T) |
|---|---|
| Displacement (cc) | 2,497 |
| Max Power (ps/rpm) | 281/5,800 |
| Max Toque (kg-m/rpm) | 43.0/1,700~4000 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front Wheelthread (mm) | 1,646 / 1,637 / 1,643 |
| Rear Wheelthread (mm) | 1,656 / 1,647 / 1,653 |
| Front OverHang (mm) | 915 |
| Rear OverHang (mm) | 1,100 |
Performance
Theta III 2.5 T-Gdi 4WD DCT 5-Seater ( Standard )
Engine
| Engine Type | θⅢ 2.5T GDI (Smartstream G2.5T) |
|---|---|
| Displacement (cc) | 2,497 |
| Max Power (ps/rpm) | 281/5,800 |
| Max Toque (kg-m/rpm) | 43.0/1,700~4000 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front Wheelthread (mm) | 1,646 / 1,637 / 1,643 |
| Rear Wheelthread (mm) | 1,656 / 1,647 / 1,653 |
| Front OverHang (mm) | 915 |
| Rear OverHang (mm) | 1,100 |
Performance
Theta III 2.5 T-Gdi 4WD DCT 6-Seater ( Standard )
Engine
| Engine Type | θⅢ 2.5T GDI (Smartstream G2.5T) |
|---|---|
| Displacement (cc) | 2,497 |
| Max Power (ps/rpm) | 281/5,800 |
| Max Toque (kg-m/rpm) | 43.0/1,700~4000 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front Wheelthread (mm) | 1,646 / 1,637 / 1,643 |
| Rear Wheelthread (mm) | 1,656 / 1,647 / 1,653 |
| Front OverHang (mm) | 915 |
| Rear OverHang (mm) | 1,100 |
Performance
Theta III 2.5 T-Gdi 4WD DCT 7-Seater ( Standard )
Engine
| Engine Type | θⅢ 2.5T GDI (Smartstream G2.5T) |
|---|---|
| Displacement (cc) | 2,497 |
| Max Power (ps/rpm) | 281/5,800 |
| Max Toque (kg-m/rpm) | 43.0/1,700~4000 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front Wheelthread (mm) | 1,646 / 1,637 / 1,643 |
| Rear Wheelthread (mm) | 1,656 / 1,647 / 1,653 |
| Front OverHang (mm) | 915 |
| Rear OverHang (mm) | 1,100 |
Performance
gamma 1.6T Hybrid Automatic Transmission 2WD 5-Seater ( Hybrid )
Engine
| Engine Type | gamma 1.6T Hybrid |
|---|---|
| Displacement (cc) | 1,598 |
| Max Power (ps/rpm) | 180/5,500 |
| Max Toque (kg-m/rpm) | 367/1,000~4100 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front Wheelthread (mm) | 1,646 / 1,637 / 1,643 |
| Rear Wheelthread (mm) | 1,656 / 1,647 / 1,653 |
| Front OverHang (mm) | 915 |
| Rear OverHang (mm) | 1,100 |
Performance
gamma 1.6T Hybrid Automatic Transmission 2WD 6-Seater ( Hybrid )
Engine
| Engine Type | gamma 1.6T Hybrid |
|---|---|
| Displacement (cc) | 1,598 |
| Max Power (ps/rpm) | 180/5,500 |
| Max Toque (kg-m/rpm) | 367/1,000~4100 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front Wheelthread (mm) | 1,646 / 1,637 / 1,643 |
| Rear Wheelthread (mm) | 1,656 / 1,647 / 1,653 |
| Front OverHang (mm) | 915 |
| Rear OverHang (mm) | 1,100 |
Performance
gamma 1.6T Hybrid Automatic Transmission 2WD 7-Seater ( Hybrid )
Engine
| Engine Type | gamma 1.6T Hybrid |
|---|---|
| Displacement (cc) | 1,598 |
| Max Power (ps/rpm) | 180/5,500 |
| Max Toque (kg-m/rpm) | 43.0/1,700~4000 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front Wheelthread (mm) | 1,646 / 1,637 / 1,643 |
| Rear Wheelthread (mm) | 1,656 / 1,647 / 1,653 |
| Front OverHang (mm) | 915 |
| Rear OverHang (mm) | 1,100 |
Performance
gamma 1.6T Hybrid Automatic Transmission 4WD 5-Seater ( Hybrid )
Engine
| Engine Type | gamma 1.6T Hybrid |
|---|---|
| Displacement (cc) | 1,598 |
| Max Power (ps/rpm) | 180/5,500 |
| Max Toque (kg-m/rpm) | 367/1,000~4100 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front Wheelthread (mm) | 1,646 / 1,637 / 1,643 |
| Rear Wheelthread (mm) | 1,656 / 1,647 / 1,653 |
| Front OverHang (mm) | 915 |
| Rear OverHang (mm) | 1,100 |
Performance
gamma 1.6T Hybrid Automatic Transmission 4WD 6-Seater ( Hybrid )
Engine
| Engine Type | gamma 1.6T Hybrid |
|---|---|
| Displacement (cc) | 1,598 |
| Max Power (ps/rpm) | 180/5,500 |
| Max Toque (kg-m/rpm) | 367/1,000~4100 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
Dimension
Exterior
| Length Overall (mm) | 4,830 |
|---|---|
| Width Overall (mm) | 1,900 |
| Height Overall (mm) | 1,720 (1,730) |
| Front Wheelthread (mm) | 1,646 / 1,637 / 1,643 |
| Rear Wheelthread (mm) | 1,656 / 1,647 / 1,653 |
| Front OverHang (mm) | 915 |
| Rear OverHang (mm) | 1,100 |
Performance
gamma 1.6T Hybrid Automatic Transmission 4WD 7-Seater ( Hybrid )
Engine
| Engine Type | gamma 1.6T Hybrid |
|---|---|
| Displacement (cc) | 1,598 |
| Max Power (ps/rpm) | 281/5,800 |
| Max Toque (kg-m/rpm) | 43.0/1,700~4000 |
Wheels
Exterior
| Front Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
|---|---|
| Rear Wheels | 7.5J X 18 / 8.5J X 20 / 8.5J X 21 |
| Front Tires | 235/60R18 / 255/45R20 / 245/45R21 |
| Rear Tires | 235/60R18 / 255/45R20 / 245/45R21 |
